PLP30 External Gear Pump Casappa
PLP30 External Gear Pump Casappa
| Displacement | Max. pressure | Max. speed | Min. speed | |||
| P1 | P2 | P3 | ||||
| in3/rev (cm3/rev) | psi (bar) | min -1 | ||||
| PLP30•22 | 1.34 (21,99) | 3625 (250) | 3915 (270) | 4060 (280) | 3000 | 350 |
| PLP30•27 | 1.63 (26,70) | 3625 (250) | 3915 (270) | 4060 (280) | 3000 | 350 |
| PLP30•34 | 2.11 (34,55) | 3480 (240) | 3770 (260) | 3915 (270) | 3000 | 350 |
| PLP30•38 | 2.40 (39,27) | 3480 (240) | 3770 (260) | 3915 (270) | 3000 | 350 |
| PLP30•43 | 2.68 (43,98) | 3335 (230) | 3625 (250) | 3770 (260) | 3000 | 350 |
| PLP30•51 | 3.16 (51,83) | 3045 (210) | 3335 (230) | 3480 (240) | 2500 | 350 |
| PLP30•61 | 3.74 (61,26) | 2755 (190) | 3045 (210) | 3190 (220) | 2500 | 350 |
| PLP30•73 | 4.50 (73,82) | 2465 (170) | 2755 (190) | 2900 (200) | 2500 | 350 |
| PLP30•82 | 4.98 (81,68) | 2320 (160) | 2465 (170) | 2610 (180) | 2200 | 350 |
| PLP30•90 | 5.56 (91,10) | 2175 (150) | 2320 (160) | 2465 (170) | 2200 | 350 |

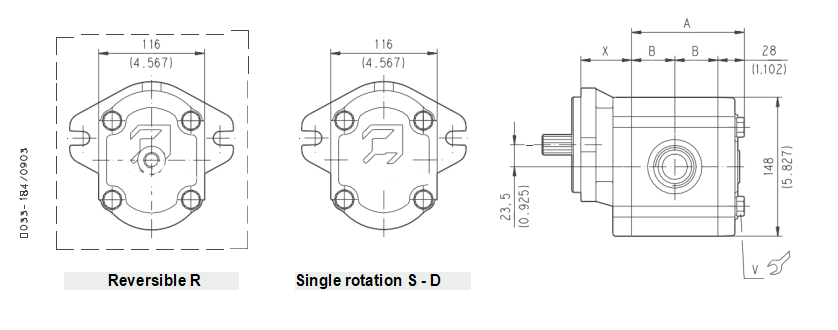

| Pump type |
A |
B |
| Motor type |
mm (inch) |
mm (inch) |
| PL. 30•22 |
106 (4.1732) |
39 (1.5354) |
| PL. 30•27 |
109 (4.2913) |
40,5 (1.5945) |
| PL. 30•34 |
114 (4.4882) |
43 (1.6929) |
| PL. 30•38 |
117 (4.6063) |
44,5 (1.7520) |
| PL. 30•43 |
120 (4.7244) |
46 (1.8110) |
| PL. 30•51 |
125 (4.9212) |
48,5 (1.9094) |
| PL. 30•61 |
131 (5.1575) |
51,5 (2.0276) |
| PL. 30•73 |
139 (5.4724) |
55,5 (2.1850) |
| PL. 30•82 |
144 (5.6693) |
58 (2.2835) |
| PL. 30•90 |
150 (5.9055) |
61 (2.4016) |
Poocca Hydraulics (Shenzhen) Co., Ltd. was established in 1997. It is a comprehensive hydraulic service enterprise integrating R&D, manufacturing, maintenance and sales of hydraulic pumps, motors, valves and accessories. Extensive experience in providing power transmission and drive solutions to hydraulic system users worldwide.
After decades of continuous development and innovation in the hydraulic industry, Poocca Hydraulics is favored by manufacturers in many regions at home and abroad, and has also established a solid corporate partnership.
As a hydraulics manufacturer, we can provide you with custom solutions to meet your unique needs. To ensure your brand is represented accurately and effectively communicate the value of your hydraulic products to your target audience.
In addition to providing regular products, poocca also accepts special model product customization, which can be customized for your required size, packaging type, nameplate and logo on the pump body
POOCCA has many certificates and honors:
Certificates: patent certificates for plunger pumps, gear pumps, motors, and reducers. CE,FCC,ROHS.
Honors: counterpart support caring enterprises, honest enterprises, recommended procurement units for China-Africa economic and trade cooperation.
Q:What is the working principle of hydraulic piston pump?
A:Hydraulic piston pumps operate based on reciprocating pistons within cylinders. When a piston retracts, it creates a vacuum, drawing in hydraulic fluid. When it extends, it pressurizes the fluid, which is then pushed out to perform mechanical work.
Q:What are the three types of piston pumps?
A:The three main types of piston pumps are axial piston pumps, radial piston pumps, and swashplate pumps. They differ in piston arrangement and operation.
Q:What are the different types of piston hydraulic pumps?
A:In addition to axial, radial, and swashplate designs, there are variable and fixed displacement piston pumps. Variable displacement pumps allow flow rate adjustment, while fixed displacement pumps maintain a constant flow. These variations suit different hydraulic system requirements.
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is the Warranty?
A: One-year warranty.
Q: What is your payment terms?
A: 100% in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
A: Conventional products take 5-8 days, and unconventional products depend on the model and quantity
