YUKEN DSG Hydraulic Valve DSG-01-3C4-D24-N1-50

●1/8 Solenoid Operated Directional Valves, DSG-01 Series，These are Solenoid Operated Directional Valves of high pressure, high，flow and low pressure drop, the features of which can be materialized
by employing a powerful wet type solenoid and the rational flow channel design.High Pressure & High Flow Rate In comparison to our existing lines, both the pressure and flow of these valves are much increased.
● Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa (4570 →5080 PSI)]
● Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa (2320 →3050 PSI)]

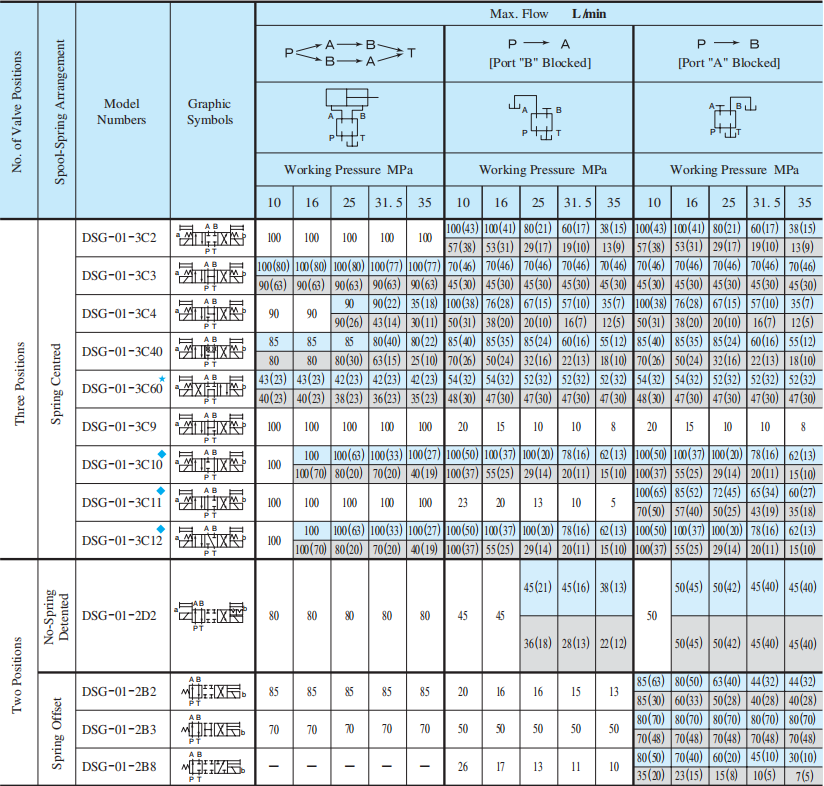

● Max. Flow Rate: approx. 60 % increased [63→ 100 L/min (16.64 →26.42 U.S.GPM)]
Low Pressure Drop
The pressure drop of these valves is reduced by 10 % from 1.0 to 0.9
MPa (145 to 131 PSI), in comparison to our existing lines*; the valves
effectively reduce the energy consumption of the unit.
{* At Flow Rate: 60 L/min (15.9 U.S.GPM),Spool Type: 3C2 (P→A)}
Compact & Small Mass
Despite of high pressure, high flow and low pressure drop, these valve
bodies are compact and lightweight with DC double solenoids; the
overall length and mass are reduced from 210 to 205 mm (8.26 to 8.07
inch) and from 2.2 to 1.85 kg (4.85 to 4.08 lbs),respectively.
